Chongqing 4 Stroke Alloy Wheel Motorcycle Super 110cc Cub

FOB Reference Price:Get Latest Price
$365.00 - $450.00 / Unit | 105 Unit/Units (Min. Order)
Model Number:
PT110-XY
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
Pantera
Type:
CUB
Engine Type:
4-Stroke
Brake(F/R):
Drum/Drum
Fuel:
Gas / Diesel
Certification:
CCC
Power:
200 - 350W
Voltage:
36V
Motor:
Brushless
Displacement:
110cc
Condition:
New
Max. Speed:
> 80km/h
Product Name:
110cc Cub
Supply Ability
Supply Ability:
5000 Unit/Units per Month 110cc Cub
Packaging & Delivery
Packaging Details
110cc Cub
CKD: wooden case or carton
SKD: steel frame + carton
Port
Chongqing

Chongqing 4 Stroke Alloy Wheel Motorcycle Super 110cc Cub

Product Description
Engine
Engine Type:Single cylinder,wind-cooled, four stroke,
Displacement (ml):107
Bore X Stroke (mm):52.4x49.5
Compression Ratio: 9.1:1
Max. Power (kw/r/min)5.2/8000
Max. Torque (N.m/r/min):7.2/5000
Max. Speed (Km/h):≥85
Lubrication:
Clutch Type:
Ignition:CDI
Starting System:
Transmission System:

CHASSIS
Front Brake:Drum brake
Rear Brake: Drum brake
Front Tire: 2.50-17
Rear Tire:   2.75-17
Battery: 12V/5Ah
DIMENSIONS
L X W X H (mm):1880x700x1180
Seat Height (mm):750
Wheelbase (mm):1230
Min. Ground Clearance (mm):100
Max. Permissionable Weight (kg):150
Rider Capacity:1 Person
Dry. Weigth (kg):95
Engine Oil (L):SAE15W/40
Fuel Tank Capacity (L):3.5
Others
Packing Size (mm):1160×800×285   1160×800×600
Packing Weight (kg):69kg
Container Loading(40HQ):105PCS

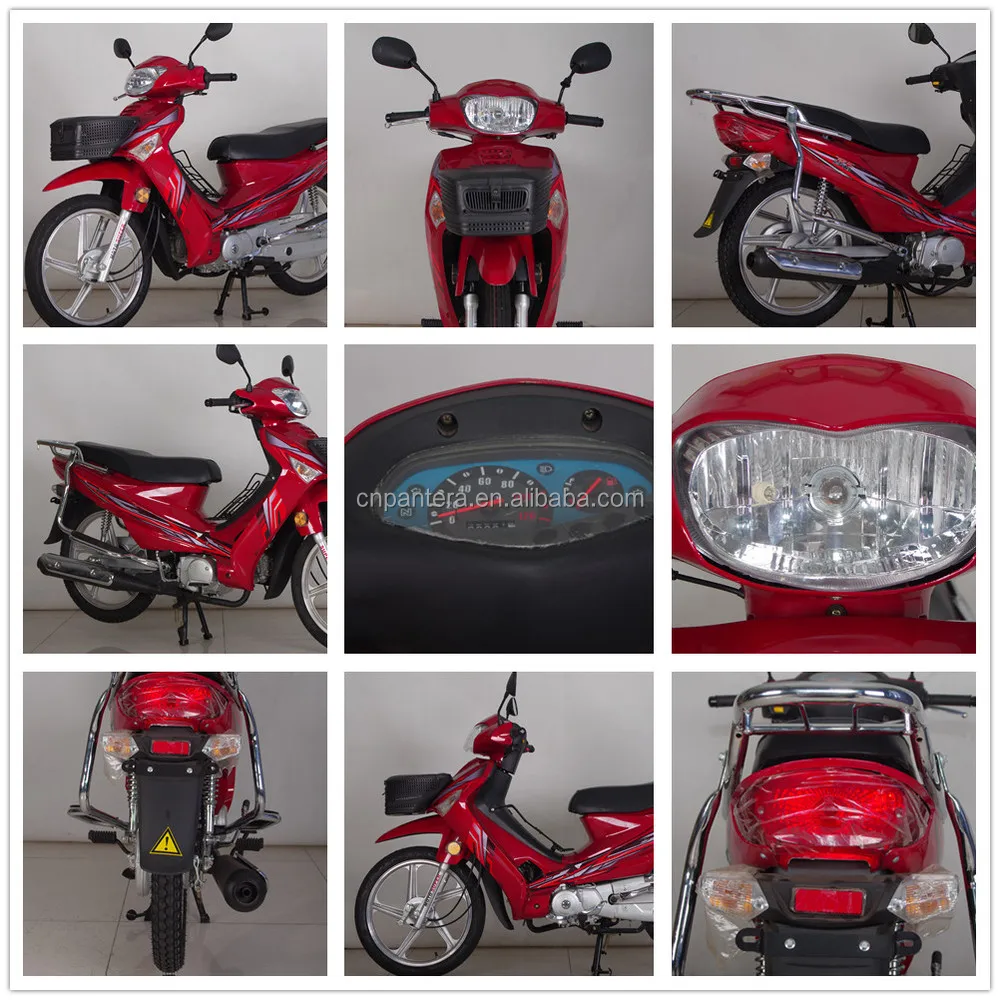

DetailsScooter 49cc (12).jpgScooter 49cc (13).jpg

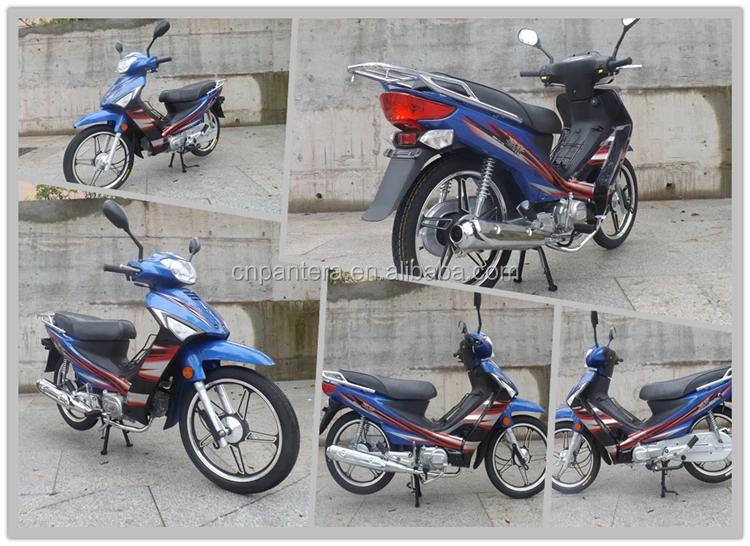

Chongqing 4 Stroke Alloy Wheel Motorcycle Super 110cc Cub.jpg

Packaging & Shipping



Packing

We have 2 different packing method, one is SKD, the other is CKD. One container can load more CKD than SKD. After customer get the bikes, SKD is easy assemble, but need more freight. CKD can save more freight, but need worker to assemble completely.



1. CKD mean Completely Knock Down, except engine, we pack all other parts in a carton, the carton made by  plywood, steel strips fix fringe and corner.

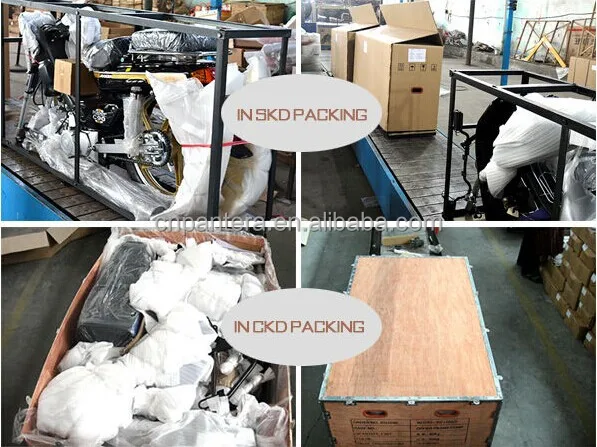

 SKD & CKD packing





Packaging & Shipping.jpg

 SHIPPING




Company Information



 company information.jpg

We are one leading manufacturer and exporter of motorcycles located in Chongqing,China. We produce more than 100 different models, including dirt bikes, atvs, scooters, helmet, go cart and motorcycles with engine size ranging from 50cc to 400cc. All products have ISO9001 certificate.
Some of them have passed the EEC certificate.
Pantera is devoted to serve the needs of the customers for the whole world. Today our products are exported to many countries, including africa, middle east, south america, europe.
Pantera  provides quality products and good service after sales.
OEM is welcome.
You are welcome to contact us for more information.
